Full Aluminium Ute Canopy

10

Built to the highest standards, using over 40 years of hands on trade industry experience, our canopies do not disappoint.



Each build individually customised to suit your exact requirements. Professional service matched with high end manufacturing. Canopies that deliver.

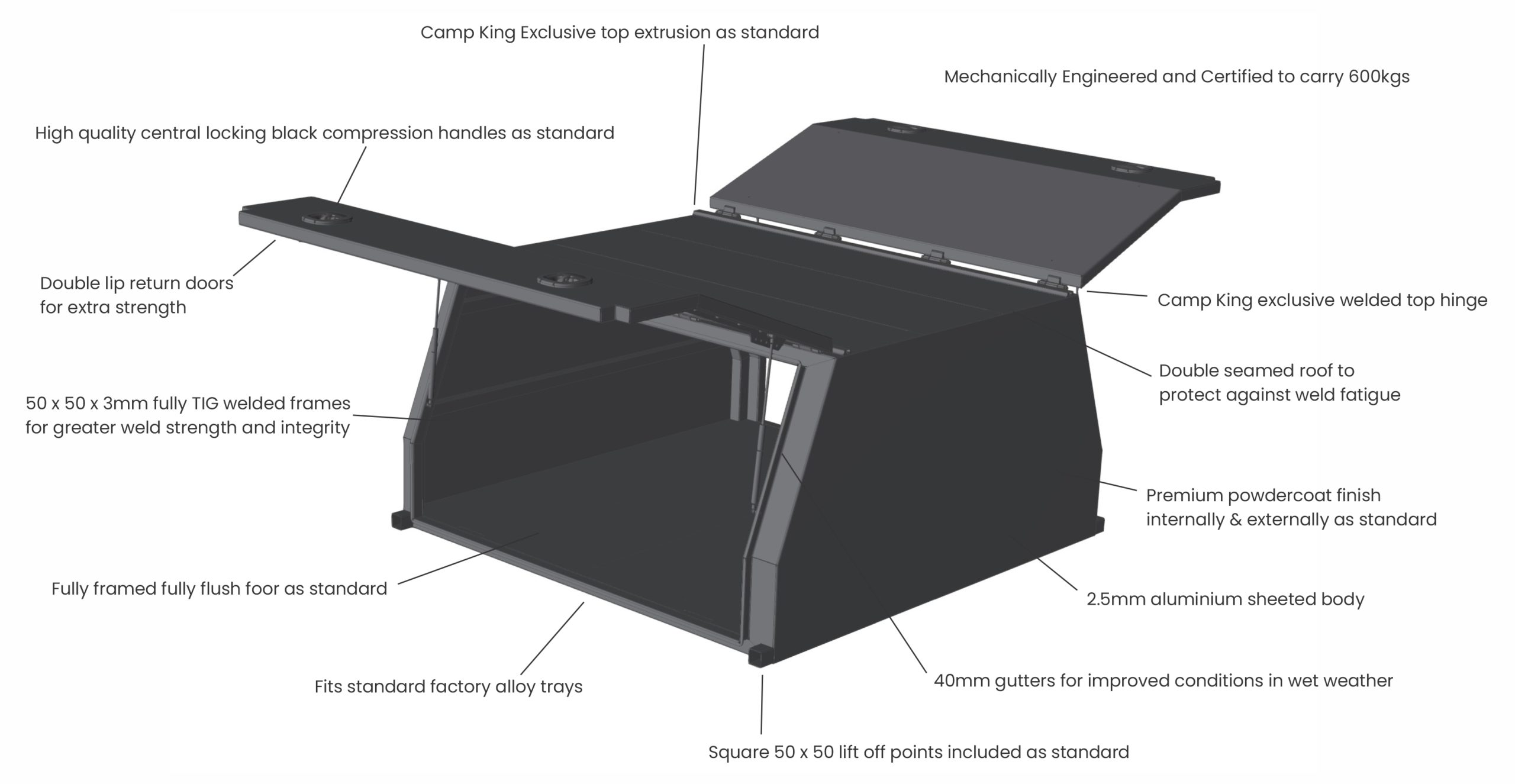

Standard Camp King Canopy Inclusions

High Quality Black Vector door locks

Heavy Duty Gas Struts on Doors

High quality pinch Weld Rubber Seals (dust proof and water proof)

Double seemed roof for extra strength and to prevent ‘weld tear out’

Double return on both doors with bolt on stiffeners for extra support

Fully framed floor with countersunk stainless steel rivets and elastic adhesive/sealant to secure floor sheeting to internal canopy frame.

High Quality black Dirak Hinges

All our Canopies are CAD designed and laser cut for precise dimensioning. Our engineer will profile the headboard of your vehicle and customise our digital design to suit, ensuring that your canopy has a streamline high end finish that is unique to your specific vehicle.



Canopy Materials

Our 2 Door off road canopies are made with a 50 x 50 x 3mm fully TIG welded frames. The bodies are sheeted in 2.5mm 5005 flat Aluminium sheet.



Canopy Roof Capacity

Our 2 door off road canopies are Engineer Certified to bear more than 600kgs in Static Weight up top. Certificate can be viewed on request.



We use Australian Made Manutec Jack off systems they can be added to the above builds (excluding the fridge box) for $1450.00 inc GST



Provisions for Jack Off Systems can be added to builds also, please advise at time of canopy booking.

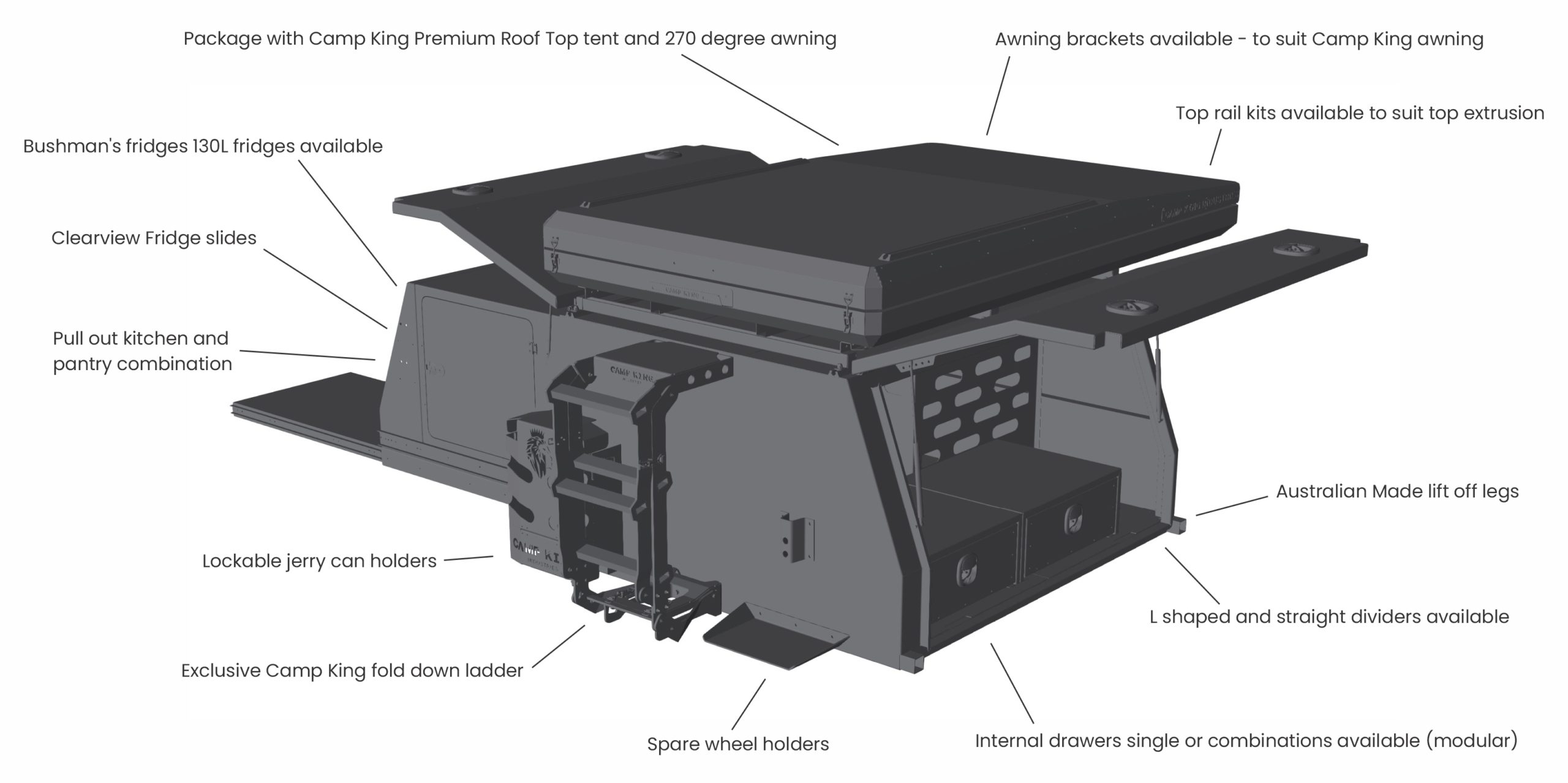

Optional Canopy Extras

Internal Draws and Shelves

Windows with screen options

Water tanks

Rear Doors

Tie Down Rails

Powder Coated Finish (outside only)

Camp King Real wheel holders

Top Racks

Camp King Jerry Can Holders

Dual Jerry Can and ladder combinations

Single Rear Ladders

Awning Mounts



12 Volt set ups – The Canopy Mate

At Camp King we now offer a standard wiring package for our canopies.

The Canopy Mate is a fully housed electrical unit containing 1 x ePOWER DC-DC charger, Fuse Panel, Dual USB socket, 2 x CIG sockets, 3 x 50 amp Anderson Plugs, battery monitoring system all pre wired for easy add on’s such as a 240v Charger, pump and small invertor to be added at a later date. The package includes 1 x LED white/amber strip lights fitted to two doors as well as 1 x AGM 120AH battery located under unit.



Price- $3316.50

Add Mains Charger- $550.00

Add invertor- $430.00



Custom individual packages can also be created to suit your requirements, these are all POA. We can offer full lithium set ups also, please email us for further details.



Fridge Slides

We use Clearview Easy Slides as featured here with Pat Callinan. These can be added to any of our canopies. There is 3 sizes to choose from.



Fridges

We can offer the addition of Evakool fridges with all our canopy builds. Full fridge’s, Fridge freezer combinations and beer draws available. Visit the EvaKool website to view the range: www.evakool.com



Camp King Canopy Kitchens

The ultimate accessory for any canopy build! Complete your fit out with one of our Stainless-Steel canopy kitchens. Be the envy of everyone with this jaw dropping set up.

Large pull out kitchen unit complete with a high quality SMEV 2 burner stove and SMEV sink with mixer tap. Cabinet approx. 1600 mm

Storage area between sink and stove area accessible from top of unit.

Large stainless-steel table bench approx. 800 mm in length with adjustable leg.



Price $3,395.00 inc gst installed.  Note- does not come with gas certificate or plumbing



Camp King Draw Sets

High end solutions. Complete touring set ups for your offroad canopy. Convenient and stylish. At Camp King Industries we can offer both built in draw sets and also free-standing draw sets.

For our built in draw units we can offer either a 2 draw set up or a 4 draw set up. Dimensions will be taken from your canopy during the build process, to ensure a precise fit. We use high quality runners on the draws.

Our 2 door free standing draw units we offer are made from 2.5mm 5005 Aluminium, they are fully TIG welded. They come with heavy duty runners rated at 227 kgs. The draws have a pinch weld seal on them to prevent any dust entry.  Draws are 1066mm deep and 1055 wide.

We use high quality black lockable compression latches.

Canopy Sizes
MODEL

Fridge Box with frame

Half Canopy

Dual Cab

Space Cab

Single Cab

LENGTH

800

Up to 1500

Up to 1800

Up to 2000

Up to 2400

WIDTH

1850

1850

1850

1850

1850

HEIGHT

1000

1000

1000

1000

1000

WEIGHT

100kg

130kg

150kg

180kg

200kg

PRICE

$3600

$4780

$6280

$6500

$6500

** These are basic sizing’s only, we can adjust to suit dimensions of most tray sizes. We can also build full custom, pricing is based on a per hour charge.

Want to Know More?

Why a Camp King Canopy?

Purchasing a canopy can be a big investment, you want to make sure you do your research and investigate exactly what each prospective company can offer you. You work hard for your money, make sure that you are investing in a reputable company, that will deliver you a quality product.



When purchasing a canopy, we recommend you consider the following:

1.       Are you buying from a reputable company that has experience in canopy building? Do they have examples of their work on display, do they welcome inspections on their work and do they have reviews on their work? Do they have quality processes in place.



We have been working in the Sheetmetal industry for over 20 years. We have owned and operated one of Brisbane’s premiere metal shops Ausmetal Engineering for over 7 years.  This metal shop has won multi awards over that time for it’s innovation, quality assurance processes and high customer morale.



We extended this business model over to our Camp King Industries brand in 2016. We bring our experience and quality assurance processes with us. We have examples of our work on display at our workshop, customers are also more than welcome to view the build stages of their own canopies. We can offer build progress reports and pictures, videos of your build, if you cannot be here to view it in person.

2.       Does the company you are buying from have adequate insurances and policies that cover your vehicle during the manufacturing process? Ask to see Certificates.



We have additional care and control insurance included within our Insurance policy, this policy covers your vehicle whist in our workshop. We also have 20-million-dollar Public Liability Policy. Certificate available at Reception.

3.       Does the company you are purchasing from have qualified tradesmen either building, or over seeing each build process? Ask to see Certificates.



All our canopy builds are either fabricated by qualified tradesmen or are carefully overseen by qualified tradesmen. We have various quality procedures in place to ensure that apprentices are supported and monitored during canopy builds. We take quality very seriously. We are trade qualified metal engineers and we have a mechanical engineer who works alongside us also.

4.       That the company can provide you with an official Terms and Conditions Policy, stating their terms of trade and warranties information.



Once you have placed your order for a Camp King Canopy or Tray you will be sent an official Order Form from us. This order form will have all your build details listed as well as all your build inclusions. You will be required to enter all your details, sign and return the form, before the build will commence. The order form will stipulate deposits, periodic payments and any other terms we stipulate. We will provide you with a full copy of our trading terms up front.



Camp King Canopies Proudly Australian Made
